Friday, 18 May 2012

Java Development in the JISC Enable Project

In a previous post I outlined the genesis of our external examiner application and how using the Archimate modelling language and Archi modelling tool helped us to secure approval for development. In this post, I describe the technical architecture of the application and try to highlight what was important to us and illustrate our line of thinking in choosing and using these technologies.

Readers who aren't interested in technical details may want to duck out at this point. It's also quite a long post!

The Business Problem

To recap the business problem, the University had identified significant duplication in quality-related business processes. We had gained approval to develop an application to address duplication in external examiner approval and reporting processes. The application would provide:
  • an interface for creating and updating information to track the approval and reporting processes
  • document management capability for sharing the documents and forms used in the processes
  • reporting capability to provide on-demand reports for sharing with stakeholders.
The application would reduce duplication by sharing data, documents and reports, removing the need to manage local data stores, manage local document libraries and produce local reports.

The Java EE 6 Platform

We chose to build the external examiner application on the Java Platform Enterprise Edition Version 6 (Java EE 6). Java EE 6 comprises a set of Application Programming Interfaces (APIs) to make development of multi-tiered and distributed enterprise applications easier, simpler and faster. We chose this platform for the following reasons:
We needed to do more with less
In recent years, we had been unable to replace staff who had left the team. Demands on the technical team had remained high with new opportunities for innovation needing to be grasped as they appeared. Consequently, it had been a case of needing to do more with less. We are always on the look-out for principles, practices and technologies to maximise efficiency and effectiveness of the team. Java EE 6 had the promise of achieving more with less (and cleaner) code.
We wanted the benefits of the Java EE 6 APIs
Prior to Enable, we had used Apache Tomcat. Tomcat implements the Java Servlet and JavaServer Pages (JSP) technologies. Applications we created to run on Tomcat were based on JSPs, servlets and portlets interacting with a database via the Java Database Connectivity (JDBC) API. This involved writing a significant amount of code to manage cross-cutting aspects of our applications like security, transactions and persistence.

Using an application server instead of Tomcat, we could use the Java EE 6 APIs and services provide by the application server to avoid a lot of the boilerplate code we would previously have written to manage the cross-cutting aspects. An application server implements the full Java EE Platform so it provides JSP and Servlet implementations and a host of other APIs including:
  • Enterprise JavaBeans (EJB)
  • Java Persistence API (JPA)
  • JavaServer Faces (JSF)
  • Java Message Service (JMS)
  • Contexts & Dependency Injection (CDI)
  • Java Transaction API (JTA)
  • JavaMail
An application server also allows configuration, tuning and monitoring to be managed centrally.
GlassFish Administration Console

We chose to use the GlassFish open source application server because it was the reference implementation for Java EE 6 and the only application server that supported Java EE 6 at the time.
Java EE 6 promised to be simpler than Spring
An alternative to Java EE would have been to use the Spring framework but we decided not to use Spring.
Spring was created as a simpler alternative to the overly-complex and invasive programming model of Java 2 Platform Enterprise Edition (J2EE), Java EE's predecessor. It emphasized simplicity of application design through use of dependency injection and aspect-oriented programming. Spring gained widespread adoption and became for many the obvious choice for enterprise Java development. We had some experience of Spring and liked the dependency injection and AOP elements but not use of XML for declarative configuration. Also, the Spring Framework had grown so much over the years that reacquainting ourselves with its large feature set was going to be a non-trivial exercise.

Java EE 6 uses a simplified programming model through use of a convention over configuration approach. With dependency injection, separation of concerns and persistence baked into the platform, Java EE 6-based applications promised to be as lean and mean as equivalent Spring applications, if not more so. Aiming for reduction in complexity, we opted for Java EE 6 instead of Spring.

Architecture of the external examiner system

An Archimate view of the applications used in the external examiners application is shown below.
Layered Archimate view of the external examiner application
Our application server was the GlassFish Server Open Source Edition which is free but follows the usual 'community' model of support, i.e. you solve your own problems with information gleaned from forums, blogs, bug tracking systems, etc.

Initially, we tried initially to run all three applications (External Examiners Web Application, Alfresco, JasperServer) on a single GlassFish instance. The memory requirements of the combined applications in production made it impossible to run all three together. Also, Alfresco is designed to run on Tomcat and, although our attempts to get it running on Glassfish were initially successful, each Alfresco release brought new configuration problems so we decided to run a 'vanilla' (default configuration, bundled) Alfresco instance on Tomcat on a separate server to avoid unnecessary configuration work.
We chose MySQL as our database software because:
  • we had experience of it from previous developments
  • it is mature, robust and fast
  • it has a large community of users and comprehensive documentation
  • it has good free tooling available.
We use phpMyAdmin for database management and TOAD for MySQL for efficiently creating queries, generating database migration scripts and performing the more advanced database manipulation.

We used Alfresco to provide document management services for the external examiners application. We used Alfresco as an interim solution to fill the document management capability gap until a University-wide document management solution is implemented. The University has a Document Management steering group which has identified the need for an institutional enterprise document/content/records management system and gathered requirements for it. Work is progressing to prepare the business case and procure and implement a system.

In the absence of a University system, we used Alfresco Community - a free version of the Alfresco open source Enterprise Content Management system. This is another community-supported offering intended for non-critical environments. Alfresco was chosen to:
  • provide shared document management functionality for the application
  • be similar enough to a University-selected solution to make re-implemention using the University solution easy
  • illustrate the value of document management to gain further grass roots support for the document management proposal
  • get some experience interacting with a document management solution to inform the University implementation.
Uploading a report to the external examiners document library
JasperReports Server
JasperReports Server was chosen to provide shared reporting functionality to replace generation of reports directly from the Microsoft Access database and circulation of them by email. JasperReports Server hosts reports created using the iReport designer tool. The server allows stakeholders to run and download reports on demand. We used the JasperReports Server Community Edition which is free and has the usual community supported approach.

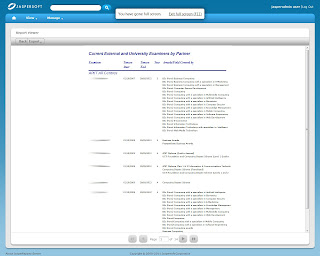

A report run on the server
iReport is a free, open source report designer for JasperReports. We used it to create reports to replace locally generated reports from the Microsoft Access database. We used TOAD for MySQL to visually design SQL queries to return data from the external examiner database for each report and used JDBC datasources in the reports so that the reports hosted on JasperReports Server dynamically query the database each time the report is run.
Visual design of a SQL query using TOAD for MySQL

The report is designed using fields from the database.
Designing a report using iReport
The report can be previewed and the report source file (XML) can be directly edited or inspected.
Editing the XML source of the report
Once finished, the compiled report files are deployed to the JasperReports Server to make them available for use.
List of reports hosted on the server

External Examiner Application

The external examiner application has been developed by the Learning Development and Innovation (LDI) department technical team. It provides an interface for creating and managing information associated with the external examiner appointment and reporting processes and a data import tool to transfer legacy data to the new database.

The application is managed as three separate projects to simplify development:
  • domain model
  • legacy data import application
  • web application

Domain Model project

The domain model is a separate project to allow it to be used by the data import application and the web application.
'Persistence Plumbing'
The domain model project models the 'things' in the real world that we are interested in and that we want to store and share information about. These are objects like external examiners, tenures, courses, reports, etc. It also includes the object relational mapping (ORM) metadata - the 'persistence plumbing' which allow these entities to be loaded from and saved to the database. We use the Java Persistence API (JPA) to do this with the Hibernate Java persistence framework providing the API implementation.
XCRI influence
Information about courses features heavily in the information recorded about external examiners and their tenures. We based the course information in our domain model on the XCRI CAP 1.1 information model . A class diagram of the domain model is shown below (open it in a new tab or window and click it to zoom into the detail).
External examiner application domain model classes

Because we were learning lots of new technologies concurrently, we wanted to keep each aspect as simple as possible. Inexperience with Hibernate made us conservative about how to implement the domain model mappings. We chose to avoid inheritance to keep the hibernate mappings simple which meant that the domain model was a bit more complicated. We replaced inheritance in the XCRI model with composition.

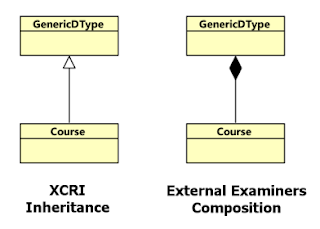

XCRI Course inherits GenericDType, our Course composes GenericDType

The downside of this was that any changes to the methods of objects being composed required corresponding changes to the methods in the objects doing the composing. Happily, changes to the XCRI objects in the domain model were relatively rare. If we started again today, with our Hibernate experience, we would just include the XCRI information model 'as is', with inheritance and all.
Mapping Metadata
The domain model contains metadata which maps object fields to tables and columns in the database. The mapping for the collection of Tenures associated with an Examiner is illustrated below. In this example, an annotation is added to the getTenures() method of the Examiner class to specify the table and columns that will be used to store the collection of tenures in the database. The Hibernate Java persistence framework can use this metadata to create the database structure when the application is first run. The Tenures collection is represented in the database as the examiner_tenures table, the structure of which is shown in the screenshot.
Persistence mapping of examiner tenures to a table in the database
Integration tests
We have created integration tests to check the persistence mappings. These tests use DbUnit which is an extension to the JUnit unit-testing framework. DbUnit is used to set the database to a known state before each test is run. The tests check that the database is in the expected state when a known object is saved and that the expected object is returned when loaded from a known database state. We use an in-memory HyperSQL database for these integration tests because the tests run faster and no clean up is required - after the tests have run, the in-memory database ceases to exist. The tests are run automatically on each build of the domain model project.

Data Import project

The data import application loads data from the legacy Microsoft Access database used by the central quality team and persists it to the shared MySQL database. This application is run once only to import the legacy data before the external examiner application is first used.
The main import method of the data import project
The data import application connects to the legacy Access database via JDBC and fires SQL queries at it to return information which is used to create domain model objects representing courses, presentations, examiners, etc. These objects are then persisted to the MySQL shared database via the JPA using the mappings previously mentioned. Some parsing of data and manipulation of objects in memory is required during data import because the external examiners domain model is more fine-grained than the Access database structure. Some columns represent more than one type of object in the domain model depending on the content of the record. For example, the award table in the access database has a continuing column which can contain
  • the name of the examiner who is taking over reporting duties for this award
  • an ending date for the award
  • the reason that the award is ending.
The text of such columns is parsed and the appropriate domain model object is created and populated.

Web Application project

The External Examiners Web Application provides a user interface for managing information to support the external examiner appointment and reporting processes. A new examiner record can be created or an existed examiner record can be located via the Search screen.
Search results

Clicking on one of the search results takes the user to the Edit screen where information can be entered and updated. On this screen, examiner contact details and tenure information can be recorded. Appointment records can be uploaded to Alfresco via the upload button. Uploaded documents are automatically placed into the correct faculty area. When reports arrive, they can be uploaded to Alfresco in the same manner on the reports tab.
Edit examiner screen showing an examiner's tenures

Technologies Used in the Web Application

We used the PrimeFaces JSF component suite for on-screen components because it is easy to use and it complements JSF by providing more sophisticated components than the default JSF suite. This makes development faster by allowing us to focus on building a user interface from existing components rather than having to design and build custom components. For example, PrimeFaces has a file upload component that we use to upload documents to Alfresco.
As we created the external examiners web application and gained experience in Java EE 6 development, we came to realise that Java EE 6 does not quite live up to its promise. Some aspects, like declarative error handling via the deployment descriptor, simply do not work and other aspects, like dependency injection, always seem to stop short of providing enough flexibility to suit the circumstances of your application. To overcome these issues, we turned to the JBoss Seam Framework to fill in the missing pieces.

Seam complements Java EE 6 well because it is based on the Java EE platform and many of its innovations have been contributed back into the Java EE platform. CDI was a Seam idea and the reference implementation of it is included in the Java EE distribution. Seam can be thought of as anticipating the next Java EE and it provides a host of features that you wish had been included in the reference implementation.

The Seam features most important to us were:
  • injection of objects into JSF converter classes (via the Faces module).
  • easy creation of exception handlers to handle application errors and session expiry (via the Solder module). The orthodox Java EE way to do this, via declarations in the web application deployment descriptor, did not work because the application server wrapped all exceptions in an EJBException making handling of individual error types impossible. Solder unwraps the exception stack and handles the root cause by default, allowing easy creation of methods to handle individual error types and conditions.
Integration with Alfresco
The external examiner web application and data import application integrate with Alfresco via two of Alfresco's RESTful APIs. For example, upload of an examiner appointment form by the external examiners Web application is handled as follows:
  1. When the user selects a file for upload and clicks the upload button, the PrimeFaces upload file component uploads the file to a temporary directory on the external examiner server.
  2. The Content Management Interoperability Services (CMIS) API 'Get Object' resource is used to return the node reference of the examiner's document folder.
  3. A multi-part POST to the Repository API 'upload' service is then used to upload the appointment form to the examiner's folder.

Design Patterns

The External Examiner Web Application implements two design patterns that help to simplify the application code. The design patterns are described in 'Real World Java EE Patterns - Rethinking Best Practices' by Adam Bien.
Persistent Domain Object (PDO) pattern
The domain model is a collection of Persistent Domain Objects. These are classes which model the real world objects we want to store information about in the database, e.g. examiner, tenure, award, report. These form a rich model of the real world objects including the business logic. This is in contrast to the anemic domain objects typically required for J2EE development. PDOs allow the developer to take an object-oriented approach to solving problems instead of having to work around the 'persistence plumbing' to interact with the domain model. Persistence metadata is added in the form of annotations to specify the mapping of objects to the database. The state of the PDOs are persisted to the database by the Entity Manager. As long as the PDOs remain in the attached state (i.e. managed by the entity manager) they can be modified through method calls and any changes will be flushed to the database when the objects are next saved.
Gateway pattern
The Gateway pattern allows PDOs to be exposed to the user interface layer. In our case this means being able to refer to domain model objects directly from JSF pages and components. The snippet below, from the examinerView page illustrates this, with the value of the tenuresTable being a direct reference to the examiner PDOs collection of tenures.
Tenures dataTable uses domain model objects directly
A Gateway object acts as a source for PDOs loaded from the database. The Gateway keeps the PDOs in the attached state by using an extended persistence context which remains alive and does not detach objects at the end of each transaction. Gateway classes are annotated to avoid transactions by default. A save method is created with an annotation which causes it to trigger a transaction. The transaction causes any changes in the PDO graph of objects to be flushed to the database. The PDOs can be used in object-oriented fashion and the save method called as needed to flush changes to the database. The Entity Manager does the heavy lifting of keeping track of all the changes to the attached PDOs and saving them to the database when a transaction is triggered.

The combination of PDOs and Gateway allows the developer to manipulate the domain model objects cleanly without having to worry about objects persistent state. This results in a cleaner, smaller codebase. High memory consumption is a potential problem if large object graphs are being loaded from the database or there are a high number of concurrent users but for our situation (approx. 20 users) profiling of the application indicated that this was not a problem.

Lessons learned:

  • Java EE 6 mostly lived up to its promise of simpler, cleaner, faster development. Significant effort was required to learn the technologies the first time around but subsequent developments on the same platform have been very rapid. Adam Bien's blog is well worth following for insight into 'just enough' Java EE application architecture.
  • To truly realise the faster, easier development promise of Java EE 6, you need to augment it with JBoss Seam to fill in some of the missing/broken pieces.
  • Basing the domain model on the XCRI CAP 1.1 information model was a wise choice. Although it was a more complex model than we might have created from scratch, we have reaped the benefit of that choice many times. Most recently, a QAA review has requested a change to the level of award detail stored with examiner records. Because of the flexibility of the XCRI-based domain model to represent most course structures, required changes to the domain model have been minimal. In addition, University Quality Improvement Service colleagues have seen the value of representing course (spec) and presentation (instance) separately and have decided to change their databases to fit the XCRI view of the world.
'XCRI thinking' spreads from the domain model to other University databases
  • We used composition instead of inheritance in the XCRI-inspired parts of our domain model because we thought representing inheritance in the persistence mappings would result in an overly-complex database structure. If we started again today, we would just implement it with inheritance.
  • Free open source ‘community’ editions of software tend to be fully featured but bugs are more common and get fixed first in the corresponding Enterprise version. You can expect to get what you pay for. Testing your application against new versions of such third party software is important. Community forums are generally very supportive but identifying and fixing problems is time consuming and goes against the desire for efficiency and effectiveness (more with less) that we are aiming for.
  • Much benefit is to be gained by participating fully in open source communities. We have blogged about our experiences, have answered questions in community forums and have asked our own questions. In each case, responses have given us a better understanding of the technologies we have used. Don't be afraid to ask questions or blog your experiences. Even if you get some information wrong, community members will correct you and improve your understanding further. The feedback is valuable.
  • With technologies like the Java EE stack which have been evolving for several years, it is important to be able to identify the 'current truth'. In other words, a lot of correct information on the Web refers to older versions of the same technology and so is no longer relevant. This becomes a problem in particular when first learning about a new technology. In trying to solve problems, searches can turn up solutions which work but which are out of date and hence not the most appropriate. We encountered this issue many times during the development of the External Examiners Web Application. At one point, we followed good but old guidance in the creation of the user interface, to create a nicely designed data transfer layer. Subsequently, using an up to date Java EE 6 approach, we made this layer redundant so we were able to remove it entirely and replace it with direct use of PDOs in JSF pages (as described above). Doing so left us with a smaller, cleaner codebase. The lesson from this is to try to find out how up to date any solution or guidance is before applying it.

Thursday, 17 May 2012

Supporting Partnerships

Why use partners?
The Enable project has worked at supporting changes within the institution, not just for the benefit of the University but also for its partners, including other HEI, FEI's and commercial partners. The project team specifically worked with 5 partner colleges, however due to issues with engagement with one college this dropped to 4 colleges. Although the project team had direct contact with these colleges it had indirect access to other colleges and their perceptions through the spoke initiatives and the stakeholder interviews completed as part of the general Enable approach.  The project aimed to use the partners to measure how successful changes within the institution would be when designing awards in partnership. It was decided that also engaging employers in the project would be problematical, due to managing their expectations and often their engagement with the institution is a one off to develop a course. They were engaged indirectly via the spoke initiatives and through discussions with internal stakeholders who engaged with commercial partners through the process of course design.
The approach
The project used a number of approaches to supporting partners in capturing expectations for the project and perceptions of course development with the University. The Project Manager started the project partners engagement with a face to face meeting of the project co-ordinators for the colleges, ( Enable: Partners Join in ) followed up by the Project Manager attending Higher Education forums at each of the colleges ( Enable: Partners). This face to face approach was important in building a relationship up with the different colleges, this was something that needed to continue through the project, but unfortunately failed whilst the Project Manager was on maternity leave. Although the Project Manager did manage some visits on returning to work it was difficult to rebuild an enthusiastic engagement with the project.
 On top of the face to face engagement the project team implemented two further communication tools, the first was simply reporting on a scheduled basis to the Project Manager and the other was the development of an online community, initially in Ning. The reporting to the Project Manager included a tracking document that would document new courses being designed, where they were in the process and noting any issues encountered with the process, on receipt of the report the agreed funding would then be released to the relevant partner. The Ning community caused the project some problems, as it changed it's funding model half way through the project, which meant previously private forums would become open to the wider community. It was felt due to the nature of some of the conversations occuring that it was important to keep the forums private, and the team subsequently moved the Ning content to a new site that offered the same functionality. However the  technology chosen to replace it subsequently also changed its funding model to that similar to Ning, causing some technical difficulties for partners accessing the site, and a lose of engagement by project partners.

Lessons Learnt

  • Have a robust partnership agreement signed at the start of the partnership, this helps with any issues around engagement and managing expectations. It helps partners understand the level of commitment needed for the project to succeed.
  • Understand that your project expectations have to match the level of engagement a partner already has with the University, if they have only got one award at the institution or a small cohort of students don't expect the same level of engagement with an institution with a large cohort or number of awards being delivered at the institution.
  • Make sure any funding to partners is given after an expected delivery or output.
  • Partners appreciate the effort of face to face meetings, and they often help with keeping up enthusiastic engagement with the project, using online tools/email is no substitute.
  • Be prepared for online tools to change their funding models, this happened twice with the project team and caused disengagement with online communication for the project teams.
  • You need to be sympathetic to changes in structure at a partner college, although this should not change how you handle payments to them it may require further meetings to support new staff.

Wednesday, 9 May 2012

The Final Story: Change Management

The Beginnings of Enable: Enable began as the University recognised that it had always been quite good at running individual change projects and managing change within curriculum design, however that recognition was tempered with the realisation that its change projects occurred in isolation, so they produced silos or they didn’t join up effectively with other things. It was also acknowledged that, although changes in curriculum design were effective at the point of teaching and learning, the administrative aspect could be made more efficient and flexible to meet the changing requirements of the institution. Each of these issues caused effort to be duplicated. The challenge for Enable was one of joining up the numerous change initiatives and looking at how they impacted on each other, whilst supporting change.

The Change Management Approach: The project team contacted Heads of Service and Deans asking about initiatives that were running in their areas that would impact on Curriculum Design and Development within the University. The original list included 15 initiatives (for the full list of initiatives raised during the life of the project check the list out here These initiatives included reviews, projects, and administrative changes. The project team identified the responsible 'initiative manager',  who was subsequently interviewed to discuss the origins of their work, issues they were hoping to address and any issues they encountered that were outside the scope of the original project but would nevertheless impact on their ability to deliver a successful output to their initiative. The project also discussed issues around curriculum design with other stakeholders, including tutors, administrators and support staff. The project team collated 'out of scope' issues and raised them with the Senior Management Working Group, a group of individuals from senior management and the executive. Based on the presentations, a number of new initiatives started up. These new initiatives used the recommendations of the Enable project team with regards to stakeholder engagement and understanding the requirements of everyone engaged in a particular area.

Lessons Learned: The project team felt this Change Management Approach was successful in its aims. It raised awareness of the need for Change Management across the institution and was able to highlight issues that projects were experiencing with the relevant staff to achieve action. The project team note that the benefits of the Change Management Approach would not have occurred without the following:
  • A consistent message which could be given out from project team to all stakeholders engaged in initiatives. This resulted in hearing our own message repeated back to us.
  • Independence/ neutrality of the project team - the project team were well known in the University, and were seen as discreet and independent of any service or faculty. This allowed stakeholders to speak freely about perceptions and issues encountered. An 'agent provocateur' department is very useful.
  • The ability to understand and communicate links to systems and processes, this was something that developed during the project but was very useful in explaining how we could move forward as an institution. This was particularly useful in highlighting issues with our quality processes for external examiners and the work taken on by administrators in the faculties. Enterprise Architecture models were a useful tool to communicate the duplication of effort and information to senior management.
  • A leader with sufficient weight to open doors to the right people at the start of the project, which helped in organising initial meetings with senior staff.
  • Presentation is important and needs to fit your organisation. For example, for us it was important not to badge things internally as 'Enable' as this had the issue of being seen as an external project, not something internally driven. By stating 'we have found.../evidence/experience has shown us that....' it was seen as part of our day to day work, which means the work we are doing can carry on beyond Enable.
  • A consistent executive/senior management team, with a clear strategy is helpful when trying to say where you are going. Alongside this, governance needs to be clear and needs to support both the initiation of initiatives and their closure when necessary. It's OK to stop initiatives where there is no longer a benefit to them running, where their benefit is outweighed by a negative impact elsewhere or where they don't have a clear goal.
